1553 Network Testers

This equipment, which tests the physical 1553 network (Cabling, couplers and terminations) without breaking down the main bus, was initially developed and manufactured for a client. A wide range of databus parameters are tested:

• Simple to use with easy to follow menu structured software.

• Automatic 'calibration'. Sealed case.

• Detachable transmitter unit for remote testing.

• Internal NiCad rechargeable battery pack provides up to 24 hours operation.

• Microprocessor controlled.

• Suitable for flight line applications.

• Insertion loss measured between any two stubs displayed in dBs with a resolution of 0.1dB

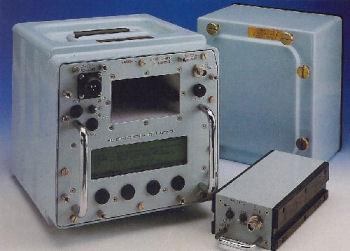

This Network Tester is a highly effective portable tool for the testing of all components of a MIL-STD-1553 databus network. All connectors, controls and displays are mounted on the front of the Receiver and detachable Transmitter unit. Both units are sealed to make the 030054 suitable for flight line applications.

It provides a great way to detect and localise short, opens, crossovers and missing terminations on a MIL-STD 1553 databus network (i.e. the physical wiring, couplers etc). The really good part is that it can do all of this without tearing the harness apart. The network is tested from the stub ends. You don't even need to get access to the twisted pair which forms the main bus to detect shorts, opens, crossovers and missing terminations there.

Operation is mainly controlled from the Receiver unit, featuring a 40 character by 8 line Back-lit Liquid Crystal Display providing a comprehensive structured operating menu and four associated 'soft keys' to assist the user with step-by-step operation. User friendly prompts and diagnostic messages on the front panel LCD make the 030054 easy to use - even for the novice or occasional user.

Recently, Airflair has taken over all aspects of supply and support of the product. If you are interested in this product please contact us to discuss your needs further or if you need servicing and support of existing units.
