The ZEUS for Windows software is a
companion to the SOAR range of USB data bus analysers,
providing an 'out of the box' solution to monitoring,
stimulating and logging a variety of avionics data bus
types.
- Comprehensive Engineering Units conversions, with
full user control.
- Simultaneous data monitoring (on display) and
recording.
- Supports ARINC 429/573/717/561/575 and MIL-SID 1553
- On-screen facility to search inputs for active
Label/SDI and RT/SA combinations.

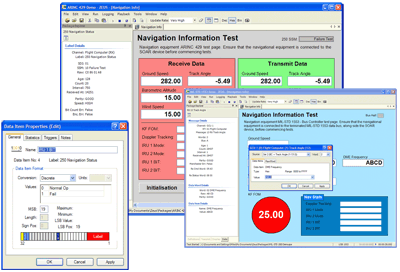

- Unlimited user defined graphic display pages (and
tabular form).
- Run time control of output information at Data Item
level.
- Off-line data export facilities. Open, XML,
definition file formats.
- High & Low Level API interface.
Download the ZEUS
datasheet
for more information or visit our brief
Quick Start guide to
discover how easy it is to display and manage your databus.
Currently on its third major
revision (see
What's New), the ZEUS software provides a robust, easy
to use solution to all your testing needs. No technical or
programming skills are necessary to get your data bus test
plans into action, monitoring your data bus activities in
user defined engineering units or raw format. The
application provides the user with all the tools necessary
to successfully monitor, analyse, log and interact with the
most popular types of avionic data buses (ARINC
429/573/717/561/575 and MIL-SID 1553).
The Zeus application allows the
user to create ZEUS 'packages' which contain information
about your data bus and the configuration of your interface
device. Label/SDI or RT/SA definitions are defined and
documented, along with numerous supported data conversions
to make your data as user friendly as possible. Transmit
cycles for ARINC 429 Tx channels and MIL-STD 1553 Bus
Controllers and RT Emulators are also defined. In addition,
the package file holds all your display information on how
you would like to present your data bus and its contents to
the user.
A comprehensive data bus search
facility is also provided which can be used to interrogate
what's happening on your databus without any setup. The GUI
add-in allows you to see at a glance what data is flowing
around you databus, allowing you to drill down into the
areas that are of interest to you.
|
